Scatter Graphs
A scatter graph is a set of individual dots. Scatter charts are used to show groupings or patterns in data points that have two variables.
| Query Requirements | Column 1: Numeric - the X value Column 2: Numeric - the Y value The query for each plot must return two columns, the first being the X, or horizontal, axis, and the second being the Y, or vertical axis. Both values must be numeric. If the X axis relates to dates or time, it must be a Unix time value. |
| Multiple Plots | Yes Each plot has its own SQL query, a colour, a name, and a line style. |
| Axis Overrides | Both X and Y You can override the automatic axis limits calculated from the data series and extend the axes to values of your choice. |

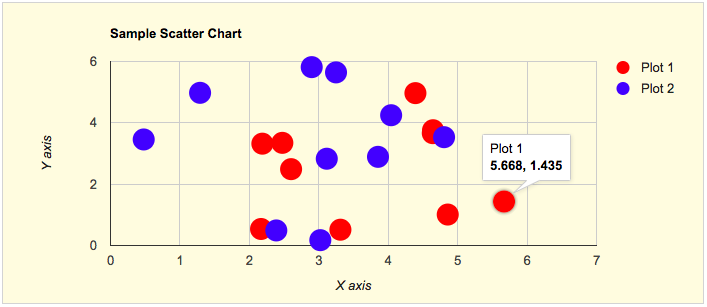

| Data Formatting | Both X and Y You can apply formatting to the X and Y axis labels. For example if the X axis data represents Unix time (seconds since 1st January 1970), you can use the formatting options to display many different date or time formats. In the example above, the X axis is formatted to show months. There are also many numeric formats to choose from. |
| Extra Columns | Yes certainty, emphasis, scope, tooltip |
